SDI Video Inputs
8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD.

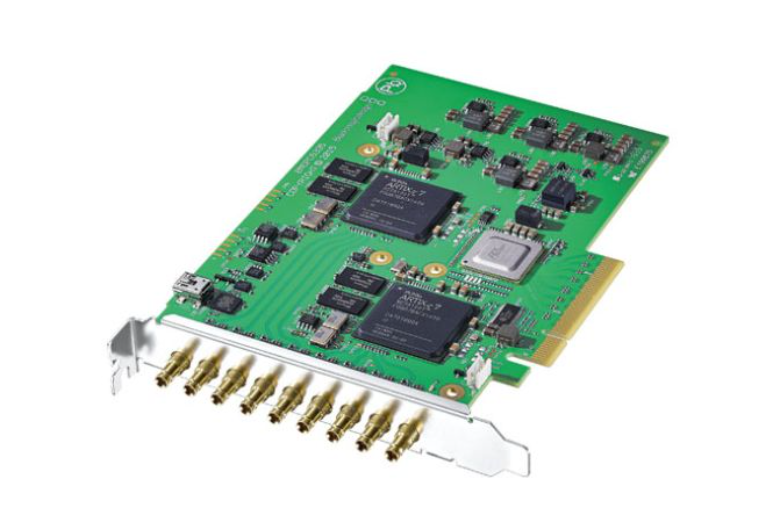

Blackmagic Design DeckLink Quad 2
|
|
| Conditional | |
| Quantity: | |
| Sku: | BMD-BDLKDVQD2 |
Add to Cart or call: (281) 501-0468 | |
SDI Video Outputs
8 x 3G-SDI mini DIN connections independently configurable as Input or Output and supports up to 12-bit SD and HD.
SDI Audio Inputs
16 channels embedded in SD and HD.
SDI Audio Outputs
16 channels embedded in SD and HD.
Sync Input
Tri-Sync or Black Burst.
Computer Interface
PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots.
DeckLink Quad 2 features 8 independent 3G-SDI mini DIN capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
